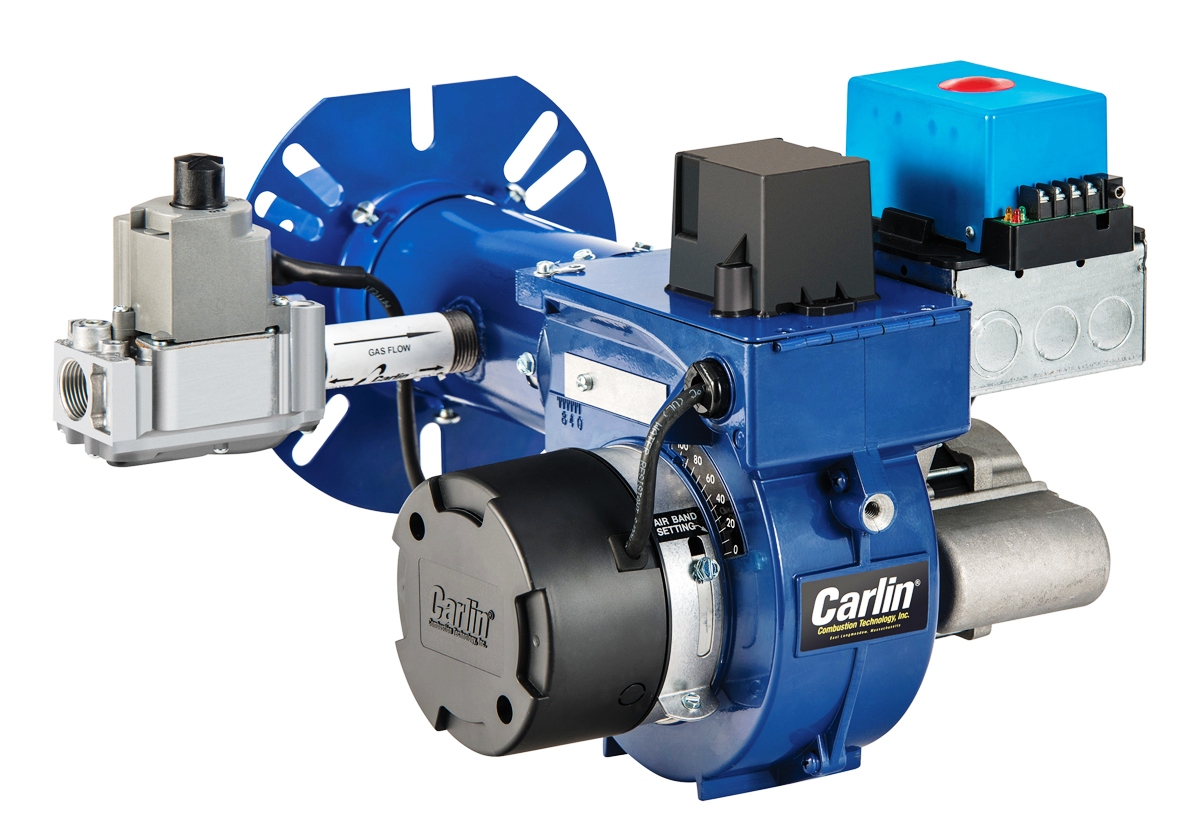

Features
Converts from propane to na
tural gas with just an orifice change –
no conversion kit needed
F
ires negative or positive chambers from 150,000 to 399,000
BTUH input
Provides
dependable,
direct-spark
ignition
of
main
flame
–
for
quick, clean light-offs
Comes standard with time-tested solid sta
te ignition and state-of-
the-art microprocessor control technology
F
actory-packaged with combustion control and gas train
Shipped completely assembled and wired – for easy installa
tion
and start-up
Dia
gnostic LED lights indicate operating mode: Self-check, Flame-
on, Recycle, Lockout and Latch-up
High-efficienc
y,
compact
flame
pattern
design
ensures
clean,
quiet
operation
Does not require a refractor
y liner – fires with or without a com
-
bustion chamber
Available
with
custom
welded
air
tube
flange
(and/or
optional
pedestal) to accommodate most appliance mounting requirements
Inc
ludes 1-year warranty
Specifications
Fuels
Natural gas or propane gas
Maximum supply pressure
.....................
14 inches w.c.
Minimum supply pressure
.....................
5.0 inches w.c.
Manifold pressure
.................................
3.5 inches w.c.
Electrical
Power
........................................
120
vac
/60
hz
/1-phase
Limit circuit input
.....................................
120
vac
/60
hz
Motor
........................................
1/6 or 1/4
hp
, 3450
rpm
Current
.....................................
Approx. 2.5 or 4.4
amps
Fuel valve power
......................................
120
vac
/60
hz
Ignition
Carlin Model 41800 solid state electronic ignitor
Ignition voltage
...........................................
9,000
volts
Control
Carlin Model 60200FR microprocessor control
•
4-sec.
T
rial
