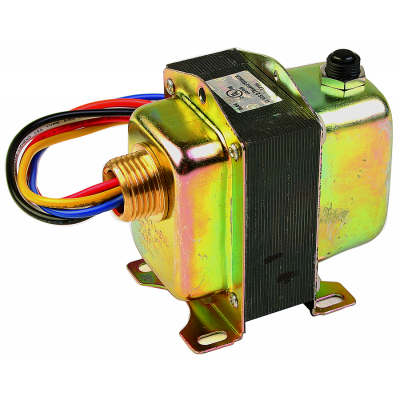

Honeywell 50 VA general purpose transformers power 24Vac circuits.

Features

• Color-coded lead wires for primary connections and screw terminals for secondary connections
• Includes fixed 1/4 inch (6mm) male quick-connects (AT150A models only) or color-coded lead wires for primary and secondary connections
• Meets Underwriters Laboratories Standard UL 1585
• Identified Class 2 not wet, Class 3 wet

Dimensions (mm)81 mm high x 56 mm wide x 93 mm deepTemperature Range (F)-20 F to +105 FTemperature Range (C)-29 C to +41 CIncludesButton for manually resetting the circuit breaker and metal end bells.Item TypeProductMountingIncludes 1/2 14 NPSM conduit connector and lock nut for mounting on plate or panel (not included) with 7/8 in. knockout, and feet for surface mount.Electrical RatingsPrimary voltage--208 Vac, 277 Vac, 480 Vac; Secondary voltage--27.5 V.O.C.Frequency60 HzApprovals, Underwriters Laboratories Inc.UL Listed: File no. E14881, Guide no. XOKV.Approvals, Canadian Standards AssociationCertified: File No. LR95329-18Tradeline ValueTradelineElectrical Connections (Primary)(in.)9 in. leadwiresElectrical Connections (Primary)(mm)229 mm leadwiresElectrical Connections (Secondary)(in.)9 in. leadwiresElectrical Connections (Secondary)(mm)229 mm leadwiresElectrical Ratings, Output24 Vac at 50 VA
