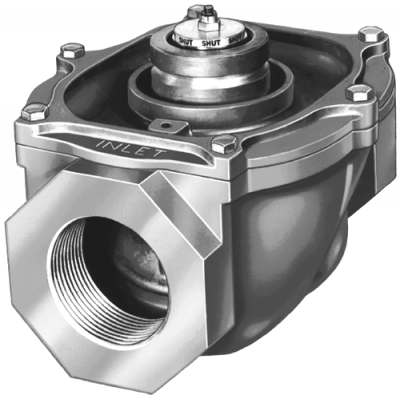

Safety shutoff valves used with V4055, V4062 and V9055 fluid power actuators to control gas flow to commercial and industrial burners.
- Use with natural or LP gases.
- Mount directly in gas supply line.
- Include 1/4 in. NPT upstream and downstream taps and plug.
- 4 in. models have only flanged connections.
- V5055 normally closed valves are rated for final shutoff service safety shutoff.
- V5055A,C,D,E Valves are for On-Off service.
- V5055B Valve has a characterized guide and in combination with the V4055, V4062, and V9055 Fluid Power Actuators, provides slow-opening, hi-lo-off, and modulating functions respectively.
- V5055C,E,F Valves have a double seal and are used with V4055D,E Actuators to provide proof-of-closure switch and valve seal over-travel interlock.
- V5055D,E,F Valves are for high pressure applications.
Includes1/4 in. -18 NPT upstream tap and plug, 1/4 in. -18 NPT downstream tap and plugUsed WithV9055; V4055; V4062Item TypeProductApprovals, Underwriters Laboratories Inc.When used with V4055A,B,D,E, V4062, V9055: Listed, File No. MH1639 Guide No. YIOZApprovals, Canadian Standards AssociationWhen used with V4055, V4062, and V5097: Certified General listed File No. 158158, Class 3371 for USA and CanadaOperating Temperature Range (F)-40 F to +150 F; When used with V9055-- -40 F to +125 FOperating Temperature Range (C)-40 C to +66 C; When used with V9055-- -40 C to +52 CApprovals, Swiss REWhen used with V4055A,B,D,E, V4062, V9055: AcceptableApprovals, Factory MutualWhen used with the V4055A,G: Approved, Report Nos. 20698, 20835, 21172, and 24061Connection TypeNPTCapacity (m³/hr)102.5 m3/hrPipe Size (inch)2 in.Pipe Size (DN)DN50Capacity (cfh)3620 cfhMaximum Operating Differential PressureWith V4055A,D or V4062-- 5 psi (340 mbar); With V4055B or E-- 15 psi (1 bar)
