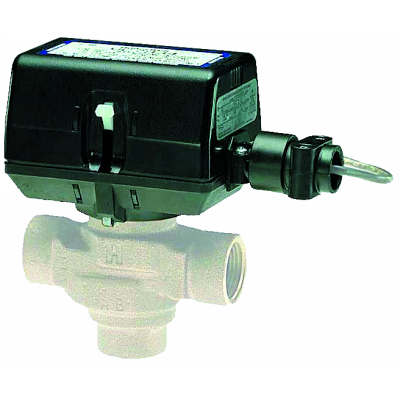

Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or floating input, modulating controller.
Features
- Use with two-way or three-way valves.
- Double insulated actuator.
- Five foot plenum-rated cable.
- Quick and easy replacement of moving parts.
- Actuator head installation does not require draining the system.
- Selectable/switchable electronic fail safe normally open or normally closed.
- Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
- All VC Series actuator-valve combinations provide 60 psi close-off.
Product Specifications
ApplicationHVACDimensions (in.)2.8 in. high x 3.7 in. wide x 2.7 in. deepDimensions (mm)70 mm high x 94 mm wide x 68 mm deepIncludesKele labelUsed WithVC Series ValveWeight (lb)0.75 lbWeight (kg)0.34 kgMaterialsPlastic housingMountingDirect CoupledFrequency60 HzApprovals, Underwriters Laboratories Inc.Listed 94-5VApprovals, Canadian Standards AssociationCSA Certified: LR1322-367Customer SpecialKeleElectrical ConnectionsPlenum-rated cableOperating Humidity Range (% RH)5 to 95% RH, non-condensingSupply Voltage24 VacPower ConsumptionDriving-- 6 VAShipping and Storage Temperature Range (F)-40 F to +150 FShipping and Storage Temperature Range (C)-40 C to +65 CApprovals, CE89/336/ECC, 73/23/EECAmbient Temperature Range (F)32 F to 150 FAmbient Temperature Range (C)0 C to 65 CEnvironmental, Electrical or Ingress Protection RatingIP40,Double InsulatedInternal Auxiliary Switch0Fluid Temperature (C)95 CFluid Temperature (F)203 FActuator TypeValveControl SignalSPST; Two positionFail Safe ModeStays in placeStroke (in.)0.4 in.Stroke (mm)10 mmCableMolded strain relief, conduit clampTiming, NominalDriving @ 60 Hz-- 6 secMaximum Differential Pressure Ratings (Close-off) (psi)60 psidMaximum Differential Pressure Ratings (Close-off) (kPa)400 kPaShaft Adapter TypeSelf-alignmentManual operationLeverElectrical Connections (in.)5 ft.Electrical Connections (mm)1.5 m
