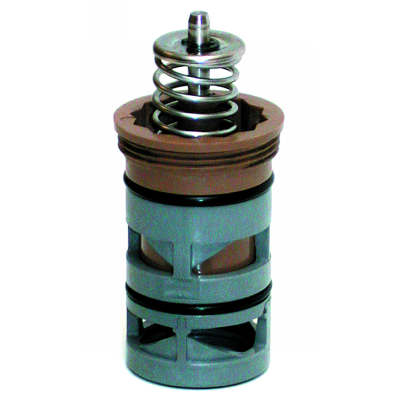

The cartridges used in VC-Series valves determine the Cv(kv) rating and flow of a valve body and can be replaced to match original factory specifications. 1000-series cartridges fit all 2-way VC bodies. 6000-series cartridges fit all 3-way VC bodies.

Features

• Use VCZZ1XXX with two-way valves.
• Use VCZZ6XXX with three-way valves.
• Quick and easy replacement of moving parts.
• Restores valve to factory-new conditions.
• Using different cartridge changes Cv and flow characteristic of body.
• Identical cartridge can have different Cv in bodies of different sizes.

Dimensions (in.)1 1/2 in. diameter x 2 9/16 in. highDimensions (mm)37 mm diameter x 65 mm highUsed WithTwo-way VC Cartridge Valves with 14 lbfCommentsAll VC actuatorsValve TypeReplacement cartridge for VC seriesControlled FluidWater w/max of 60% Glycol. Not for use with SteamMaterials (Stem)Stainless SteelMaterials (Cartridge)EPDM, Ryton & Noryl plasticFlow CharacteristicLinearStem Travel (in.)0.4 in.Stem Travel (mm)10 mm
