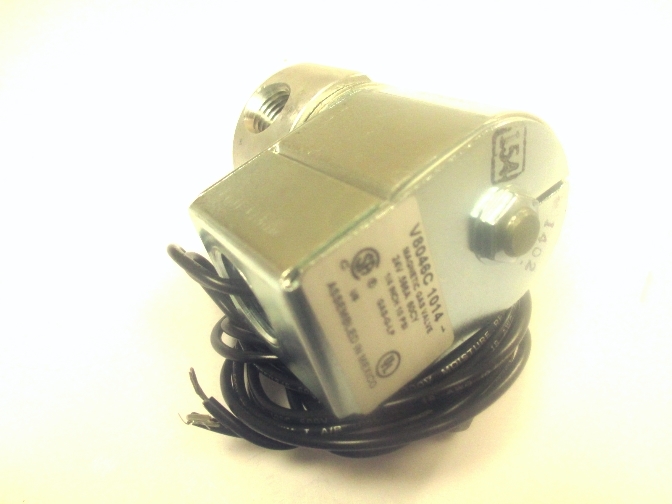

1/4 in. NPT 24Volt Solenoid Pilot Gas Valve.

Provide on-off control of natural, LP and manufactured gases to pilot burners in industrial and commercial applications.

Features

• Magnetically operated, normally closed.
• Provide instantaneous action when energized.
• On power failure, valve closes in one second maximum.
• Use in any position, directly in pipe line or on support bracket.
• Replace the solenoid coil without removing the valve body from the piping connections.
• Straight-through valve pattern.
• Available in line voltage or low voltage models.

Product Specifications

Dimensions (in.)

3 in. high x 2 5/8 in. wide x 1 5/8 in. deep

Dimensions (mm)

76 mm high x 67 mm wide x 41 mm deep

Materials

Body--Aluminum

Mounting

Directly in pipe or on support bracket

Frequency

60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. MH1639, V3, S3 - Guide No. YIOZ

Approvals, CSA

Certificate No. 158158-2500006058, Guide No. C3371-03, 83

Electrical Connections

Two 36-in. leadwires and 1/2 in. conduit bushing

Power Consumption

8 W

Voltage

24 Vac

Operating Temperature Range (F)

-40 F to +125 F

Operating Temperature Range (C)

-40 C to +52 C

Approvals, Factory Mutual

Approved: Report No. 17450

Body Pattern

Straight-through

Pressure Ratings (psi)

10 psi

Pressure Ratings (kPa)

68.9 kPa

Capacity (m³/hr)

0.57 m3/hr

Type of Fuel

Air; natural; manufactured; LP

Pipe Size (inch)

1/4 in.

Capacity (cfh)

20 cfh

Valve Opening Time

1 sec max

Valve Closing Time

1 sec max
