| Valve Design: 2-Way/2-Position | Max. Operating Pressure Differential: 0.5 psi |
| Orifice Dia.: 11/16" | Min. Operating Pressure Differential: 0 psi |
| Watts: 10.5 | Coefficient of Volume: 6 |
| Overall Height: 4-1/4" | Overall Length: 4-1/2" |

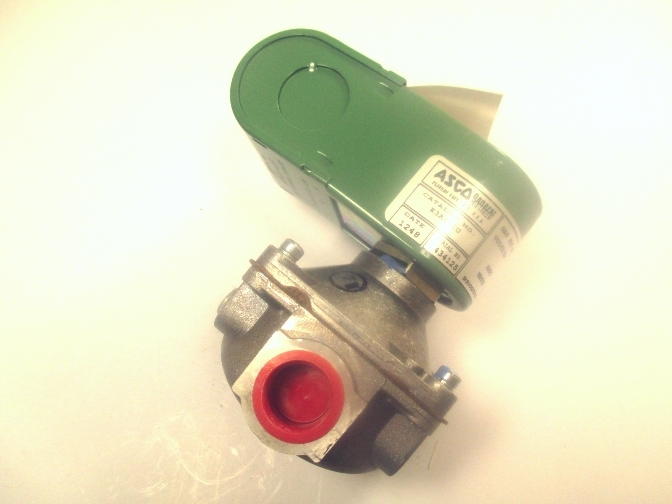

| Body Material: Aluminum | Item: Fuel Gas Solenoid Valve with Test Port |
| Center Line Pipe Center Size: 3-11/16" | Max. Fluid Temp.: 77 Degrees F |
| Pipe Size: 1/2" | Overall Width: 2-5/8" |
| Hz: 60 | Ambient Temp. Range: -40 Degrees to 77 Degrees F |
| BtuH: 350,000 | Voltage: 24VAC |
| Seal Material: NBR | Coil Insulation Class: F |
| Electrical Connections: 1/2" Conduit with 18" Leads | Media: Fuel Gas |
| Valve Configuration: Normally Closed | Application: For Positive Shutoff on Pilot or Main Gas Lines of Commercial and Industrial Gas Burners |
| Coil Enclosure: General Purpose Junction Box | NEMA Rating: 1 |
| Standards: UL, FM, CSA for Safety Shutoff | Country of Origin (subject to change): Mexico |
