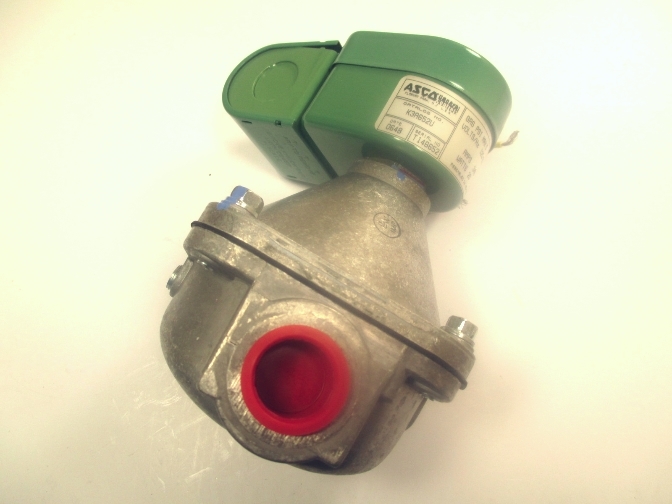

Asco K3A652U 3/4" 120volt Solenoid Gas Valve.
| Valve Design: 2-Way/2-Position | Max. Operating Pressure Differential: 5 psi |
| Orifice Dia.: 1-1/4" | Min. Operating Pressure Differential: 0 psi |
| Watts: 20 | Coefficient of Volume: 12 |
| Overall Height: 4-1/4" | Overall Length: 2-3/4" |
| Body Material: Aluminum | Item: Fuel Gas Solenoid Valve with Test Port |
| Center Line Pipe Center Size: 5-15/32" | BtuH: 667,000 |
| Max. Fluid Temp.: 77 Degrees F | Pipe Size: 3/4" |
| Overall Width: 3-5/8" | Hz: 60 |
| Voltage: 120VAC | Ambient Temp. Range: -40 Degrees to 175 Degrees F |
| Seal Material: NBR | Coil Insulation Class: F |
| Electrical Connections: 1/2" Conduit with 18" Leads | Media: Fuel Gas |
| Valve Configuration: Normally Closed | Application: For Positive Shutoff on Pilot or Main Gas Lines of Commercial and Industrial Gas Burners |
| Coil Enclosure: General Purpose Junction Box | NEMA Rating: 1 |
| Standards: UL, FM, CSA for Safety Shutoff | Country of Origin (subject to change): Mexico |
