Valve Design: 2-Way/2-Position | Max. Operating Pressure Differential: 0.5 psi |
Orifice Dia.: 1" | Min. Operating Pressure Differential: 0 psi |
Watts: 10.5 | Coefficient of Volume: 14 |
Overall Height: 4-7/8" | Overall Length: 4" |

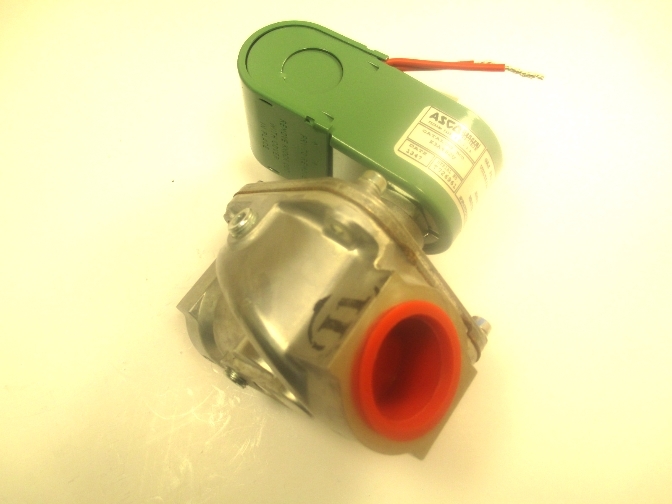

Body Material: Aluminum | Item: Fuel Gas Solenoid Valve with Test Port |
Center Line Pipe Center Size: 4" | BtuH: 755,000 |
Max. Fluid Temp.: 77 Degrees F | Pipe Size: 1" |
Overall Width: 3-1/4" | Hz: 50/60 |
Ambient Temp. Range: -40 Degrees to 175 Degrees F | Voltage: 120VAC |
Seal Material: NBR | Coil Insulation Class: F |
Electrical Connections: 1/2" Conduit with 18" Leads | Media: Fuel Gas |
Valve Configuration: Normally Closed | Application: For Positive Shutoff on Pilot or Main Gas Lines of Commercial and Industrial Gas Burners |
Coil Enclosure: General Purpose Junction Box | NEMA Rating: 1 |
Standards: UL and CSA for Safety Shutoff | Country of Origin (subject to change): Mexico |
